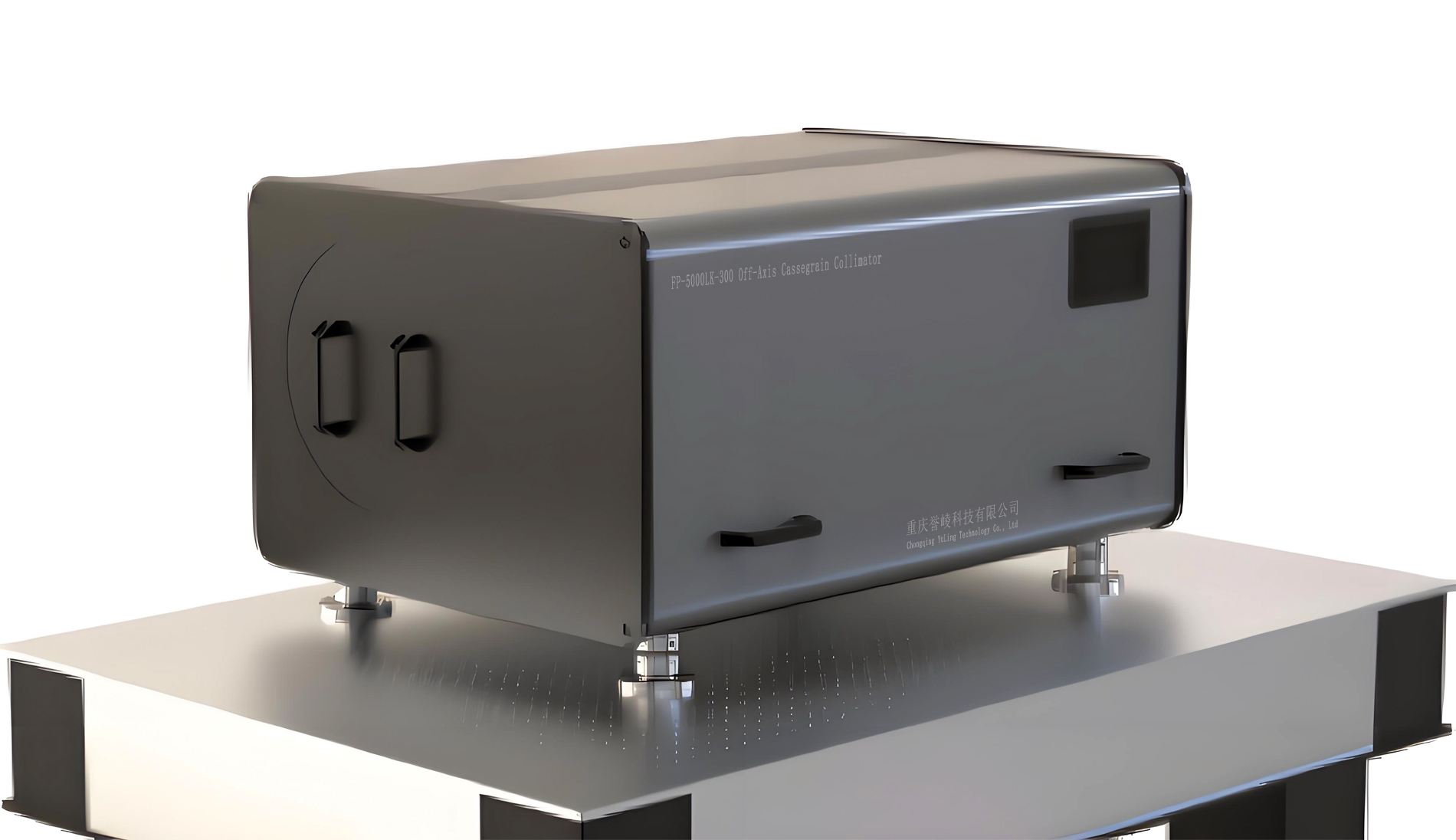

Introduction:
The off-axis Cassegrain collimator employs an asymmetric optical design where the primary and secondary mirrors are not aligned on the same axis. This configuration reduces stray light and reflections within the system, enhancing optical performance. With a large aperture, long focal length, wide spectral range, chromatic aberration-free imaging, compact structure, small size, unobstructed light path, and high signal-to-noise ratio, it is particularly suited for applications requiring extremely high optical quality.
Key Functions:
- Optical axis alignment for multi-axis systems in visible, infrared, and laser wavelengths.
- Basic parameter testing of optical systems using various reticles and additional accessories.
- Infrared imaging quality testing and optical axis alignment with a blackbody source.
- Provides ultra-low divergence angle parallel light.
- Simulates an infinite target.

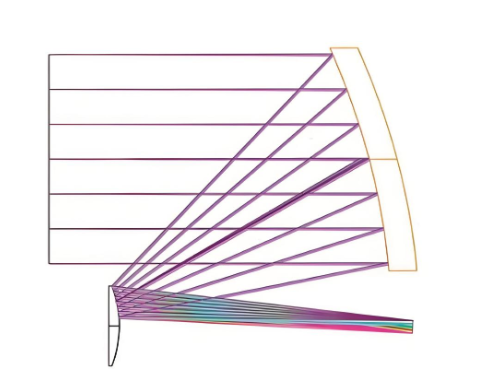

Optical path diagram：
Standard Components:
- Collimator Main Unit: 1 set
- Filters: 2 pieces (Orange, center wavelength 600nm; Green, center wavelength 532nm)
- Attenuator: 1 piece (Neutral Attenuator 430–730nm)
- Visible Reticles: 12 pieces(Crosshair Reticles*1,Resolution Reticles*5:1#/2#/3#/4#/5#,Star Point Reticles*5: 0.1/0.2/0.01/0.02/0.05,Porro Board*1)
- USAF 1951 Resolution Reticle: 1 piece
- Light Source Assembly: 1 set( 12V30W Halogen Light Source)
- Motorized Target Wheel: 1 set (8 positions)
Custom Components (Applicable to Infrared Reticles):
Infrared targets are formed by machining various patterns into thin metal plates. When illuminated by a blackbody source, the thermal imager under test observes sharp target patterns against a uniform background. A variety of standard infrared targets are available for customization.
Examples of Targets:
- Four-Bar Target: For Minimum Resolvable Temperature Difference (MRTD) testing.
- Circular Target: For Minimum Detectable Temperature Difference (MDTD) testing.
- Slit Target: For Slit Response Function (SRF) testing.
- Cross-Circle Target: For axis alignment, aiming, and focusing.
- Distortion Target: For testing camera distortion in image generation.
- Outline Target: For evaluating target recognition range of the camera under test.
- Square Target: For testing Noise Equivalent Temperature Difference (NETD), Fixed Pattern Noise (FPN), Signal Transfer Function (SITF), and Aperiodic Transfer Function (ATF).

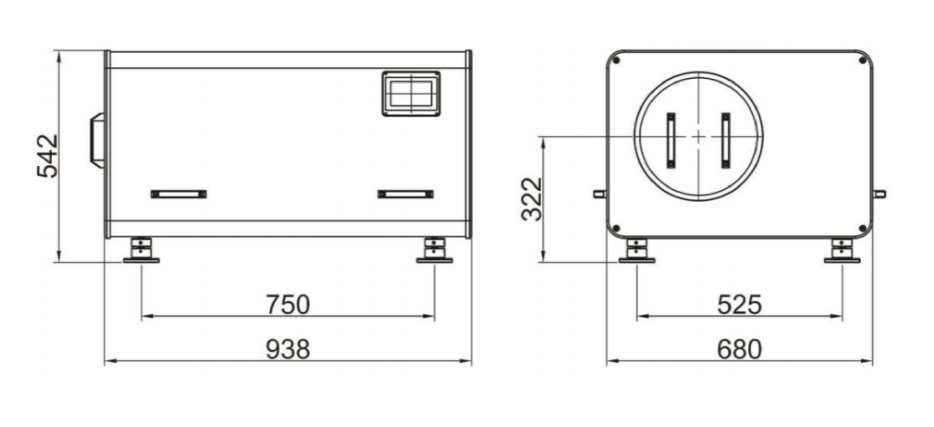

External dimensions:（Unit: mm）
Advanced Off-Axis Cassegrain Optical Design
This collimator eliminates central obstructions, enhancing optical efficiency and precision in high-resolution optical applications.
High-Precision Optical System
Designed for laser alignment, optical testing, and high-accuracy metrology, ensuring consistent and repeatable performance.
Premium-Grade Optics & Materials
Built with high-reflectivity coatings and precision-polished optics, providing exceptional light transmission and beam uniformity.
Versatile Compatibility
Ideal for use in optics research, space observation, defense applications, and advanced imaging systems.
Product Advantages
- Enhanced Optical Accuracy – Utilizes high-precision cassegrain optics to deliver superior collimation and beam quality.
- Low Optical Aberration – Off-axis design reduces wavefront distortion, improving image clarity and measurement accuracy.
- High Durability & Stability – Constructed with top-tier optical materials, ensuring long-term performance in demanding environments.
- Wide Range of Applications – Used in aerospace, optical system alignment, metrology, and scientific research.
- Customizable Configurations – Available in different focal lengths, coatings, and mounting options to meet specific needs.
