FG-500 Optical Bench with 500mm Objective Focal Length

Product Application:

The FG-500 optical bench is a versatile optical measuring instrument characterized by superior image quality, a wide range of accessories, and ease of use. It is primarily used for image quality analysis and the determination of fundamental optical parameters of various optical components, assemblies, and systems. Equipped with diverse attachments, the instrument supports the following measurements:

1. Using an autocollimating front lens, the parallelism deviation of plane glass plates and the optical parallelism and double image deviation of prisms can be measured.
2. The Barlow method can be used to determine the focal length of objective lenses, as well as directly measure the back focal length. Using an adjustable front lens, the minimum focal distance of prisms, plane mirrors, and their combined systems can be determined.
3. With the aid of additional instruments, parameters such as diopter, parallax, magnification, exit pupil diameter, and exit pupil distance of telescope systems can be measured.
4. The resolution of objective lenses, prisms, and their combined systems can be determined using the resolution plate method.
5. The star point method can be applied to evaluate the imaging quality of lenses, prisms, and their combined systems.

The main components of the instrument include a collimator, a base equipped with guide rails, and various auxiliary devices for different purposes, such as lens holders, reading microscopes, or various support stands. These auxiliary devices can all be mounted on the guide rails. The guide rails are equipped with a graduated scale, with a division value of 1 mm. Given its versatility, the optical bench is highly suitable for optical instrument production, scientific research, and educational applications in related fields.

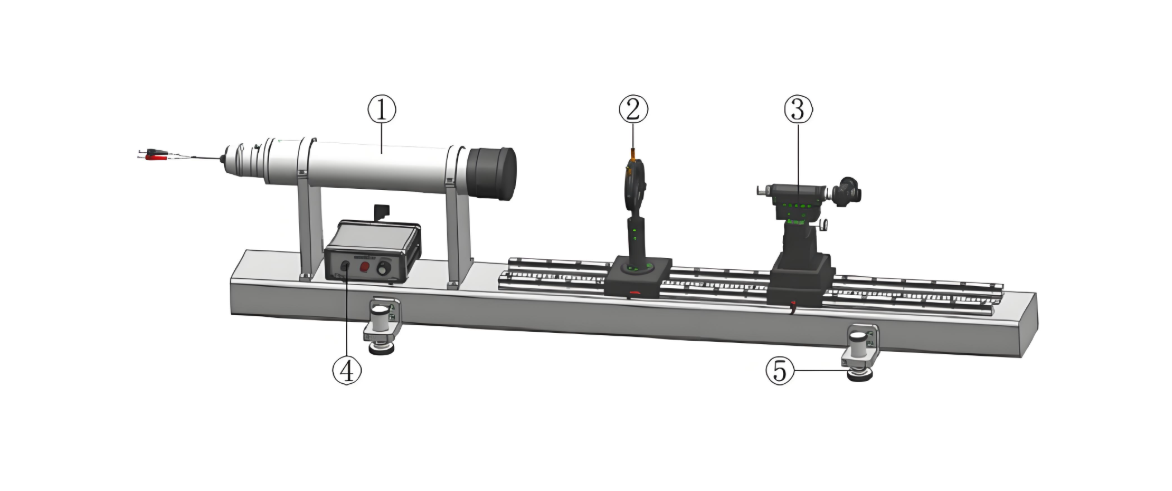

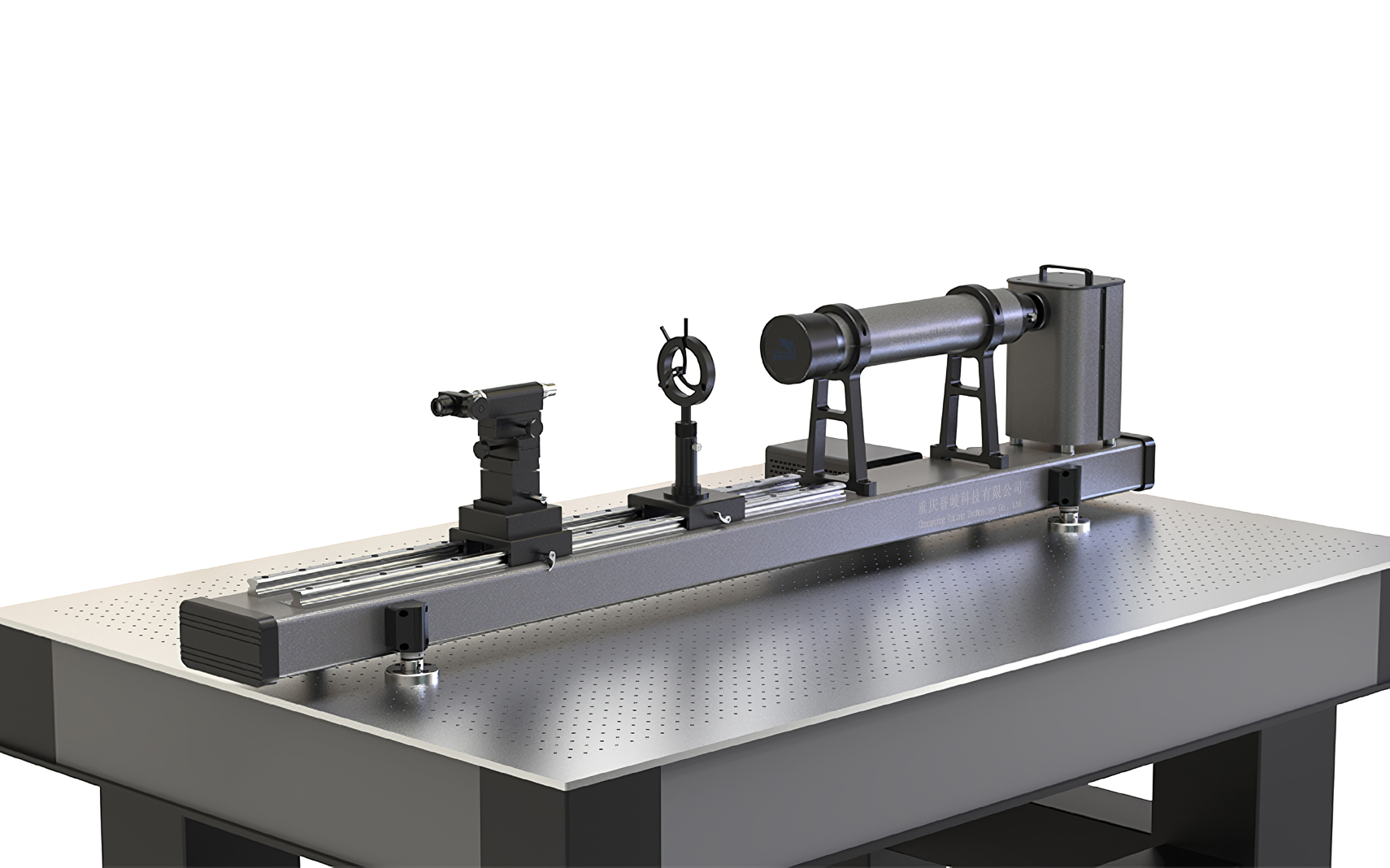

Main structure:

1. F-500 collimator
2. Lens holders
3. Reading Microscope
4. Regulated power supply
5. Rails with base

Standard Components:
Collimator Main Unit:  1 piece
Rails with base: 1 piece(length:1000mm)
Reading Microscope: 1 set
Lens holders: 1 piece
Filters: 2 pieces (Orange, center wavelength 600nm; Green, center wavelength 532nm)
Attenuator: 1 piece (Neutral Attenuator 430–730nm)
Visible Reticles:  7 piece(Crosshair Reticles*1,Resolution Reticles*2 :2#/3#,Star Point Reticles*3: 0.2/0.02/0.05,Porro Board*1)
DC voltage stabilizing power supply: 1 piece (Output voltage:0-30V，Output current:0-5A)
Light Source Assembly: 1 set (12V30W halogen light source)

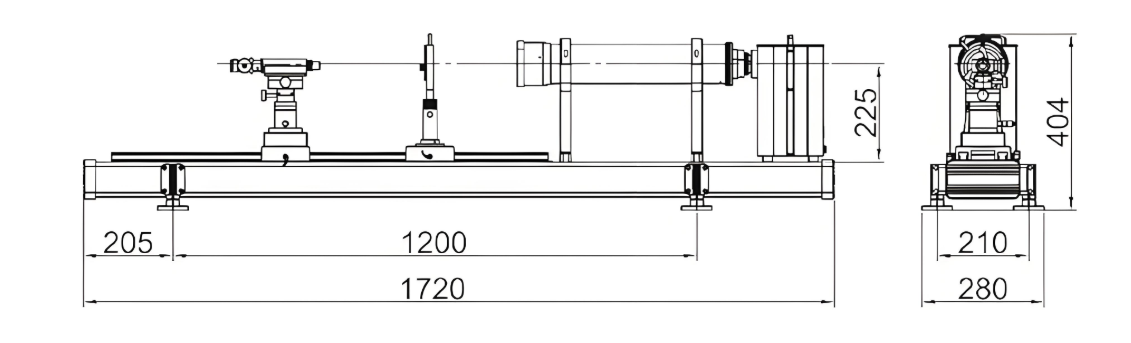

External dimensions:（Unit: mm）

Precision Platform for Advanced Optical Experiments
The FG-500 Optical Bench by YuLing Technology is engineered to provide a stable and precise platform for conducting advanced optical experiments. Its integration of high-quality rectangular collimator and lens collimator components ensures minimal beam divergence and precise focus.

Seamless Integration with Collimation Systems
Designed for compatibility with a wide range of optical setups, the FG-500 Optical Bench offers easy integration with autocollimation and collimator bore sight systems, enhancing system performance without the need for extensive modifications.

Robust Construction for Long-Term Reliability
Constructed with durable materials, the FG-500 Optical Bench withstands demanding environments, ensuring consistent performance over time. Its robust design supports the stability of the lens collimator, maintaining alignment even under challenging conditions.

Versatile Applications Across Industries
Ideal for use in research laboratories, industrial inspection, and precision manufacturing, the FG-500 Optical Bench serves as a critical component in systems requiring exact optical alignment. Its advanced rectangular collimator technology supports a variety of applications, from laser systems to imaging equipment.

Product Advantages

• High-Precision Alignment– Utilizes advanced rectangular collimator technology to achieve accurate optical alignment, essential for high-performance systems.
• Versatile Integration– Compatible with various optical setups, the FG-500 Optical Bench accommodates different lens collimator configurations for seamless system integration.
• Durable Construction– Built with high-quality materials to ensure long-term reliability and maintain the stability of the rectangular collimator under various conditions.
• Enhanced System Performance – Improves overall system efficiency by providing precise alignment, reducing optical aberrations, and enhancing the functionality of the lens collimator.
• Wide Range of Applications – Suitable for diverse industries, the FG-500 Optical Bench supports applications requiring meticulous optical alignment, leveraging its advanced rectangular collimator features.

Enhance your optical systems with YuLing Technology’s FG-500 Optical Bench. Contact us today to place your order and experience the precision and reliability of our advanced rectangular collimator, lens collimator, autocollimation, and collimator bore sight solutions.
