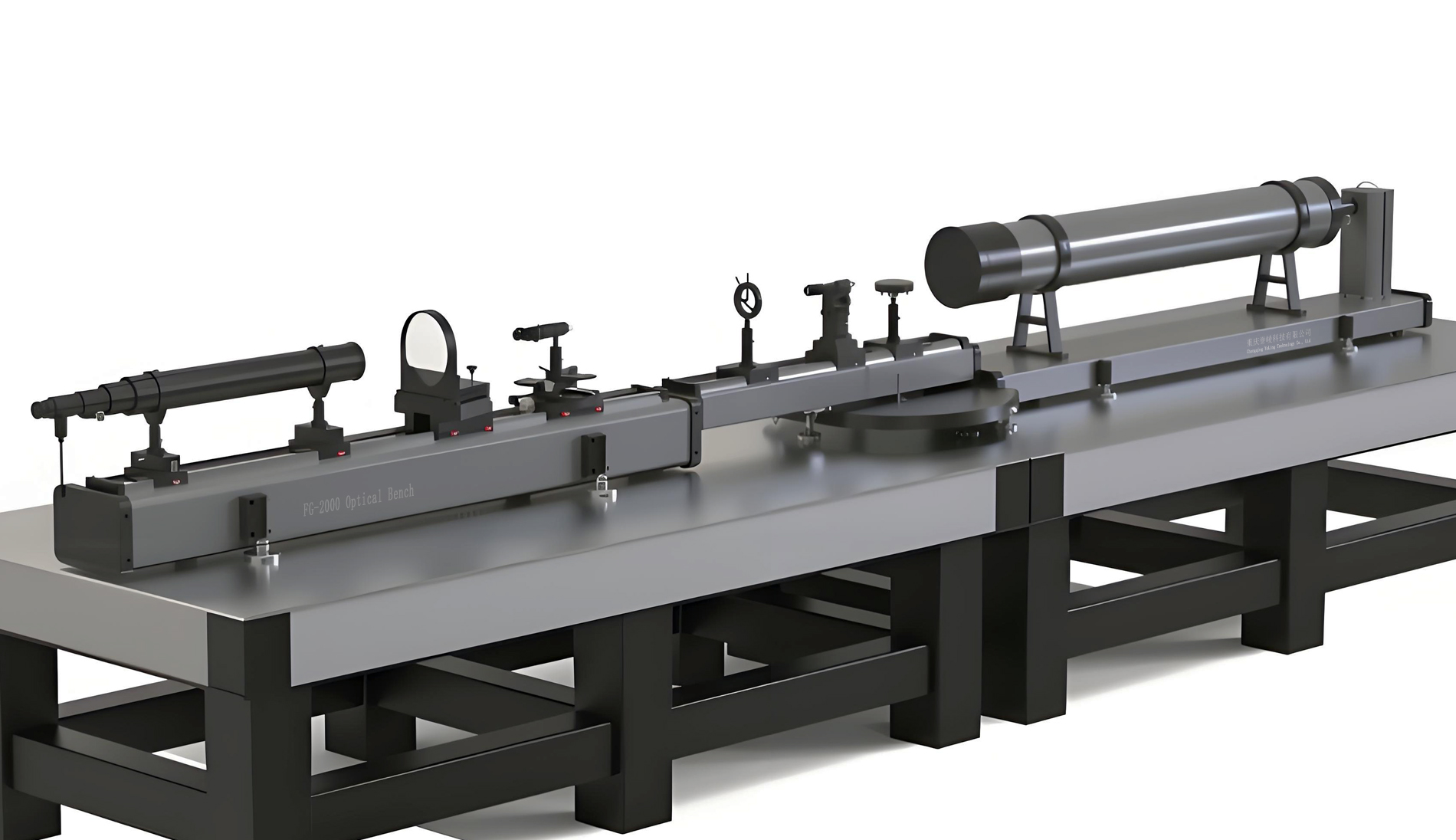

FG-2000 Optical Bench with 2000mm Objective Focal Length

Product Application:

The FG-2000 optical bench is a versatile optical measuring instrument characterized by superior image quality, a wide range of accessories, and ease of use. It is primarily used for image quality analysis and the determination of fundamental optical parameters of various optical components, assemblies, and systems. Equipped with diverse attachments, the instrument supports the following measurements:

1. Using an autocollimating front lens, the parallelism deviation of plane glass plates and the optical parallelism and double image deviation of prisms can be measured.
2. The Barlow method can be used to determine the focal length of objective lenses, as well as directly measure the back focal length. Using an adjustable front lens, the minimum focal distance of prisms, plane mirrors, and their combined systems can be determined.
3. With the aid of additional instruments, parameters such as diopter, parallax, magnification, exit pupil diameter, and exit pupil distance of telescope systems can be measured.
4. The resolution of objective lenses, prisms, and their combined systems can be determined using the resolution plate method.
5. The star point method can be applied to evaluate the imaging quality of lenses, prisms, and their combined systems.

The main components of the instrument include a collimator, a base equipped with guide rails, and various auxiliary devices for different purposes, such as lens holders, reading microscopes, or various support stands. These auxiliary devices can all be mounted on the guide rails. The guide rails are equipped with a graduated scale, with a division value of 1 mm. Given its versatility, the optical bench is highly suitable for optical instrument production, scientific research, and educational applications in related fields.

Standard Components:

Collimator Main Unit:  1 piece

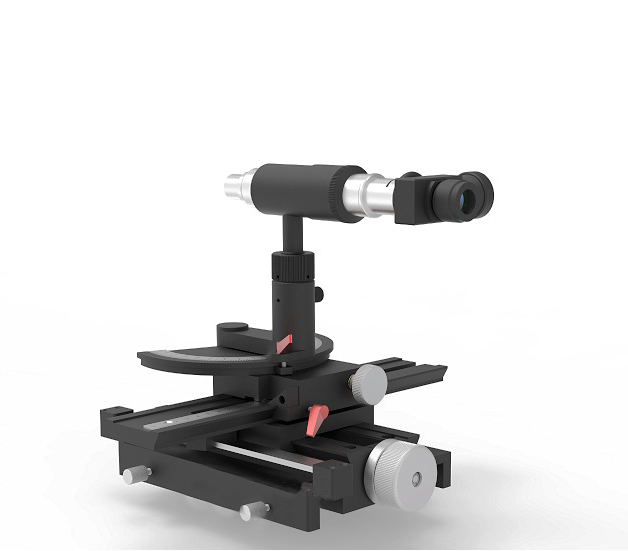

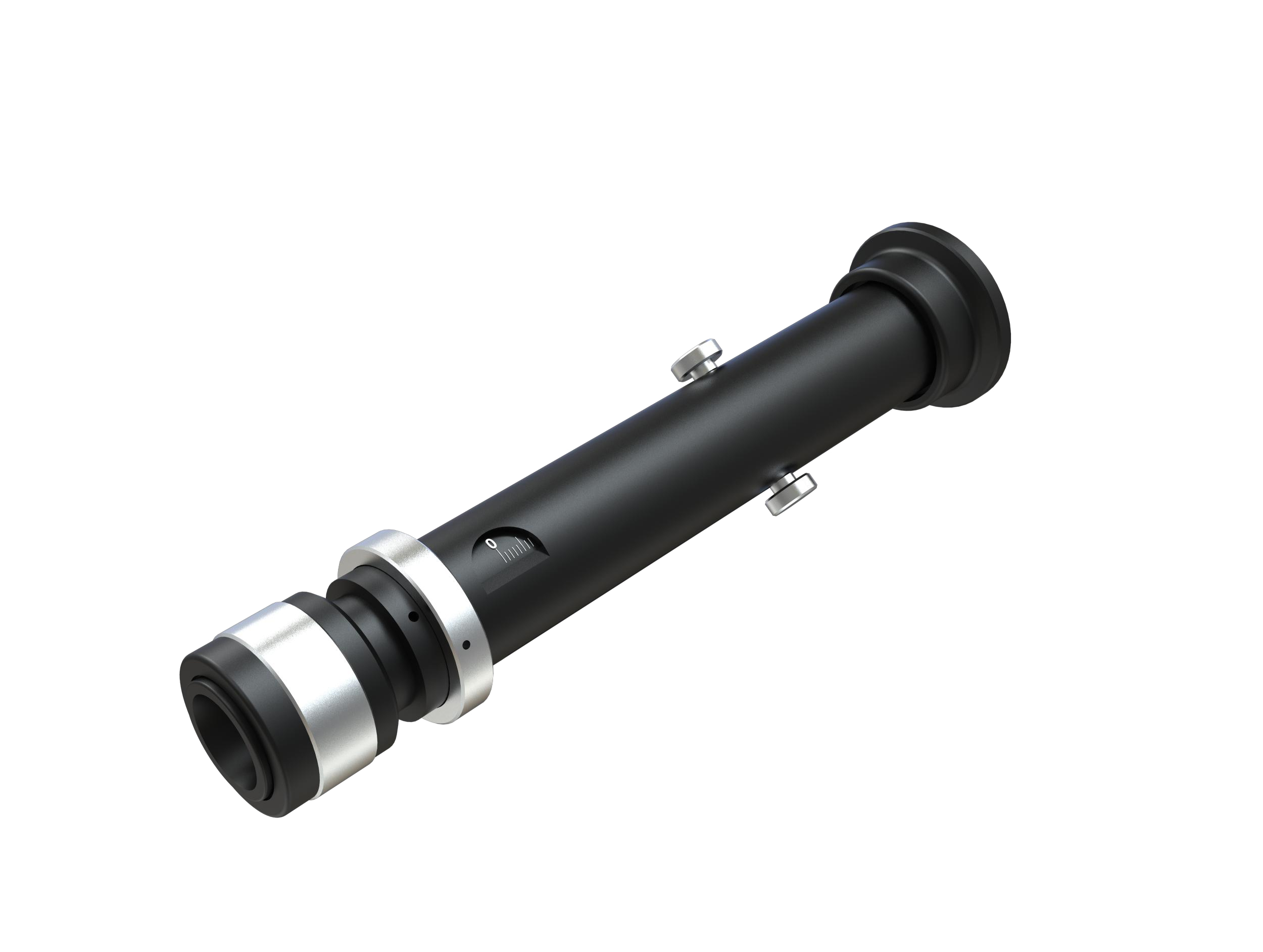

Measuring microscope: 1 set(Eyepiece Magnification：5^× 10^× 15^× ; Objective Lens Magnification 0.2^× 0.5^× 1^× 4^× 10^× 40^×)
Rails with base: 1 piece (length:1200mm)

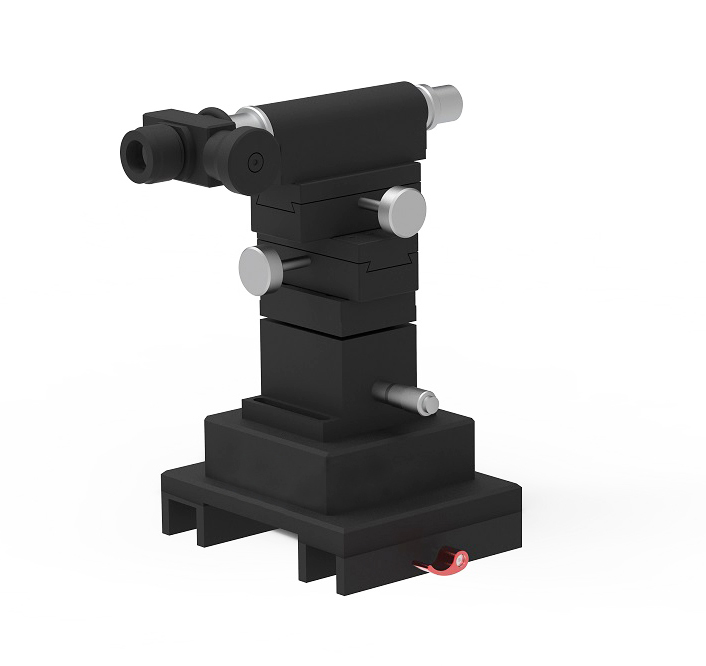

Reading Microscope: 1 set

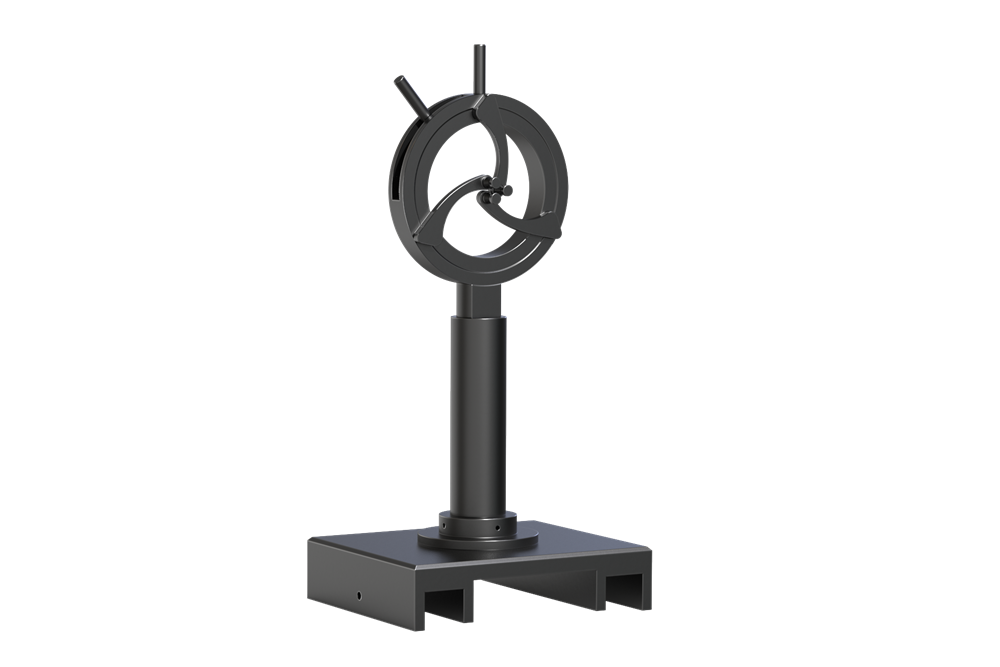

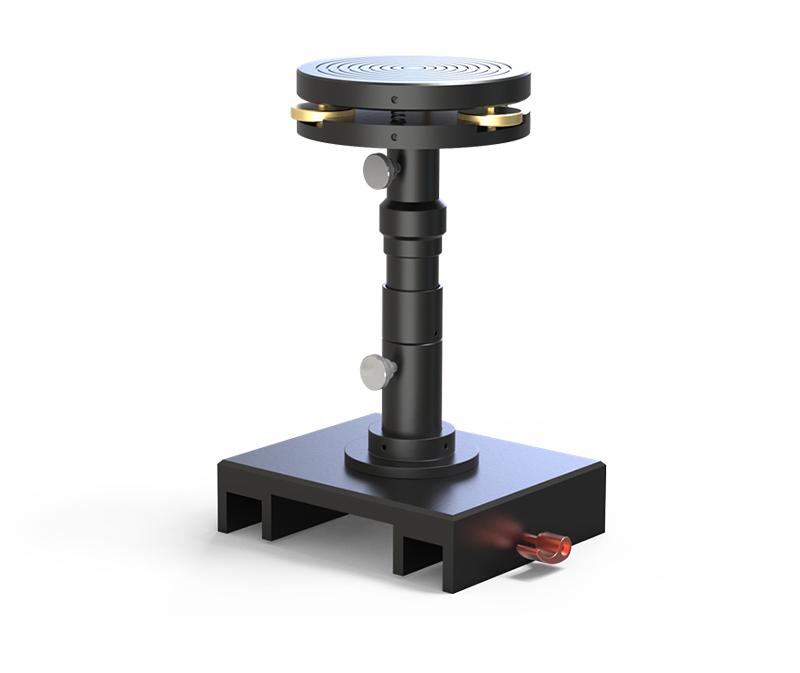

Lens holders: 1 piece

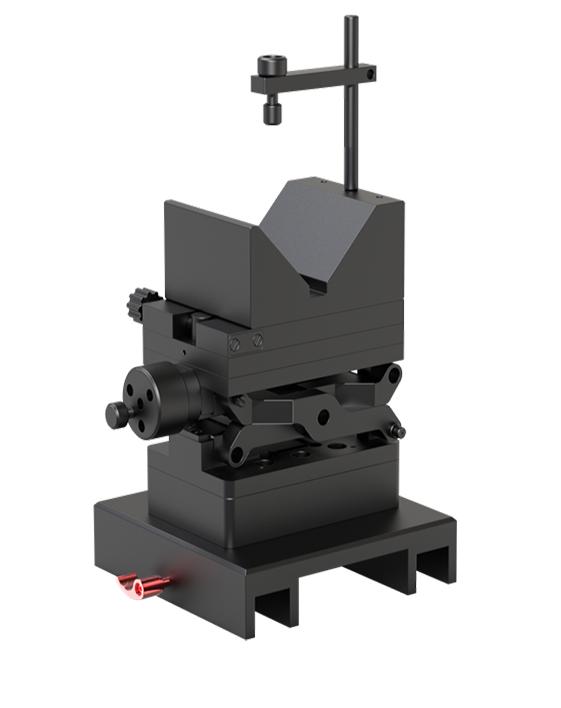

V-bracket: 1 piece

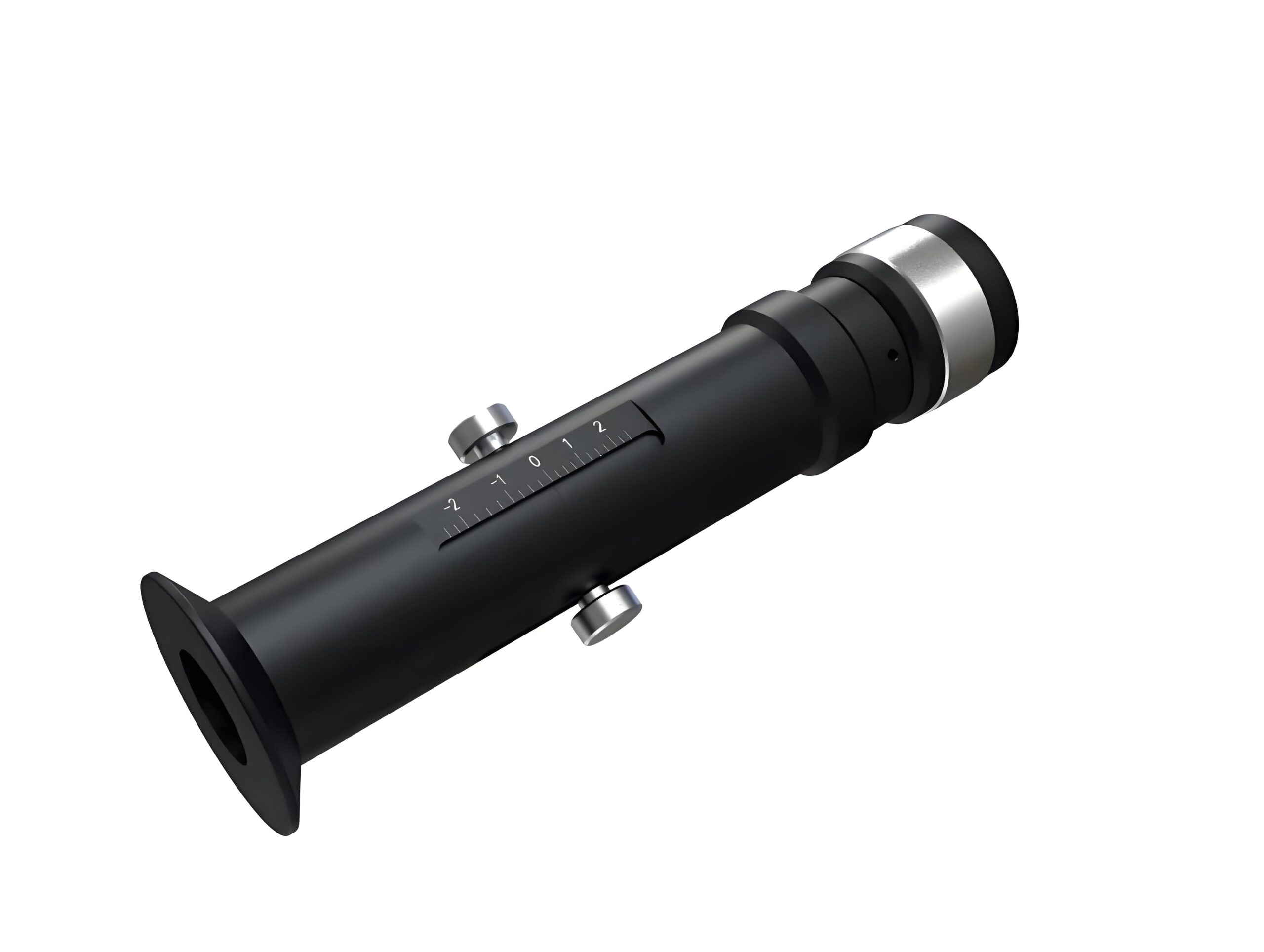

Diopter cylinder: 1 piece (measuring range:±2.5SD )
Dynameter: 1 piece (Magnification rate: 25^x)
Rotating Autocollimation Fore-Mirror: 1 set (20^x)
Objective Lens Holder：1 piece
Single front mirror: 1 set (4^x)
Gaussian eyepiece：1 set
Filters: 2 pieces (Orange, center wavelength 600nm; Green, center wavelength 532nm)
Attenuator: 1 piece (Neutral Attenuator 430–730nm)
Visible Reticles:  11 piece(Crosshair Reticles*1,Resolution Reticles*4 :1#/2#/3#/4#,Star Point
Reticles*3:0.1/0.01/ 0.2/0.02/0.05,Porro Board*1)
Power supply: 1 piece(For rotating autocollimating front mirrors)
DC voltage stabilizing power supply: 1 piece (Output voltage:0-30V，Output current:0-5A)
Light Source Assembly: 1 set (12V30W halogen light source)

External dimensions:（Unit: mm）

High-Precision Optical System
The FG-2000 Optical Bench is engineered for superior alignment accuracy, allowing for precise optical experimentation and light transmission control.

Robust & Stable Structure
Built with high-strength materials and precision machining, this optical bench offers long-term durability while reducing vibration and environmental interference.

Versatile Optical Mounting Platform
Compatible with various optical components, including lenses, mirrors, auto collimators, and laser alignment systems, making it a universal optical solution.

Ideal for Scientific & Industrial Use
Perfect for optics research, metrology applications, and laser alignment systems, ensuring consistent optical performance in high-precision experiments.

Product Advantages

• Superior Optical Alignment– Provides stable and precise optical system calibration.
• Durable & High-Quality Construction– Made from premium-grade materials for enhanced longevity and stability.
• Wide Application Range– Suitable for research laboratories, industrial optics, and metrology setups.
• Customizable Configurations– Available with various mounting options for specific optical system needs.
• Precision Engineering– Designed for scientific experiments, optics light systems, and laser measurement applications.

About us

Chinacqyl is a leading manufacturer and supplier of high-precision optical and X-ray collimators, serving industries such as medical imaging, industrial inspection, and scientific research. With years of expertise in radiation control and optical alignment, we provide cutting-edge solutions for high-performance imaging and analysis.

Why Choose Us?

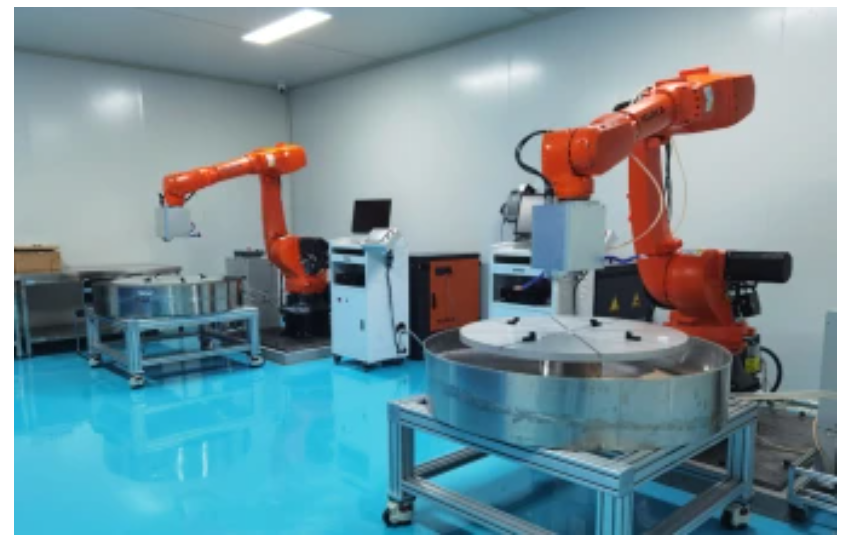

• Advanced Manufacturing Technology – Our state-of-the-art production facilities ensure high-precision collimators with strict quality control standards.
