Applications:

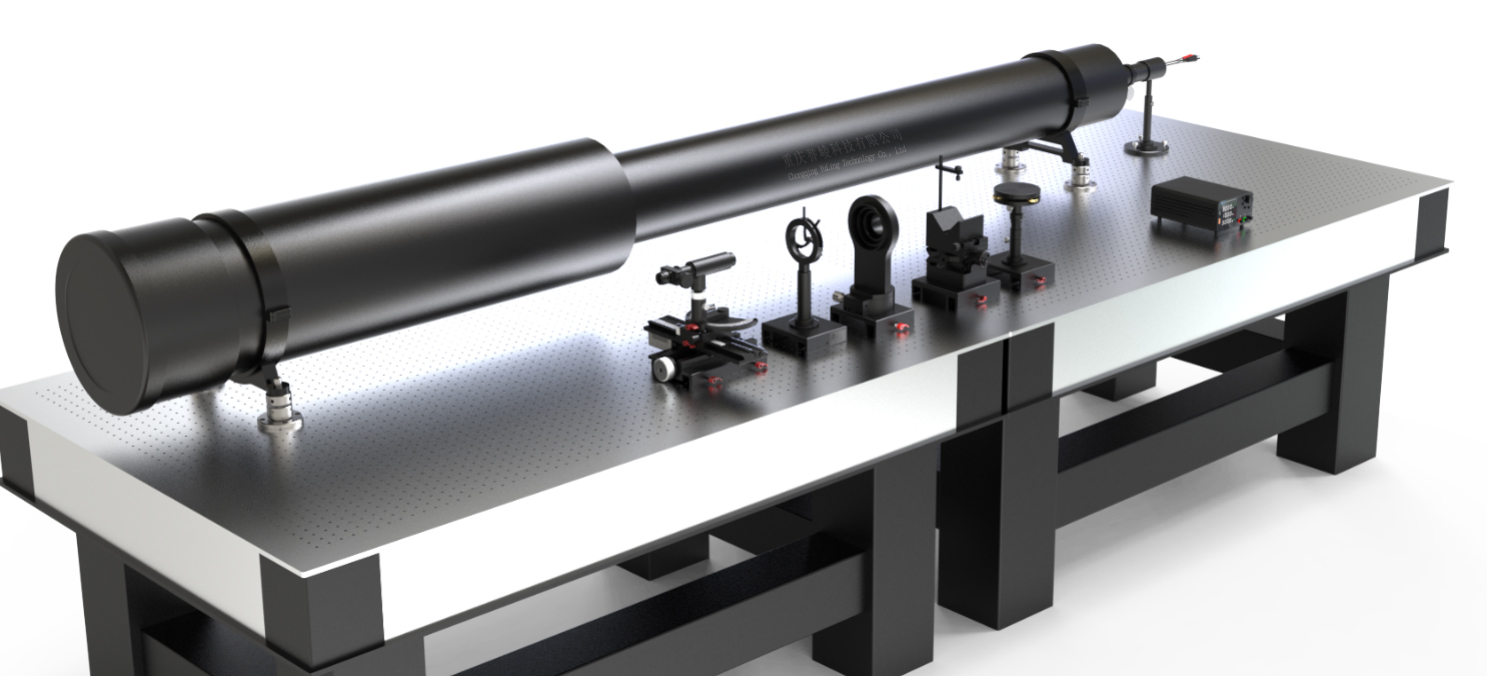

The F-3000 Collimator Tube is an instrument used to generate a large-diameter parallel light beam, with a wide range of applications. By selecting different reticle plates and pairing it with various accessories such as observation microscopes, front mirrors, it can be used for the following purposes:
- As a fundamental tool for optical instrument alignment and adjustment.
- With the selection of a Borosilicate plate and paired with a reading microscope or measuring microscope, it can be used for measuring the intercepts and focal lengths of lenses and various objective lenses.
- With the selection of an appropriate resolution plate, and paired with an observation microscope and front mirror, it can be used for determining the resolution of lenses, prisms, plane mirrors, and various objective lenses, as well as for assessing image quality by observing resolution patterns.
- With the selection of an appropriate star pattern plate and paired with an observation microscope and front mirror, it can be used to evaluate the image quality of lenses, prisms, plane mirrors, and various objective lenses.
- By equipping the instrument with specialized mirrors and measuring eyepieces, it can be used to measure straightness or flatness deviations of rails and large flat surfaces.
- As a tool for aiming at long-distance targets.
Additionally, the F Series Collimator Tubes are essential test reference components for optical material uniformity checks and the calibration of various optical mounts. Therefore, they are commonly used in the production, research, and teaching of optical instruments.
Working Principle:
As shown in the figure below, the reticle serving as the target is uniformly illuminated by light source 1 through various color filters 2. If the reticle 3 is correctly positioned at the focal plane of the objective lens 4, the light emitted from the objective lens forms a parallel light beam, which is equivalent to light originating from infinity.

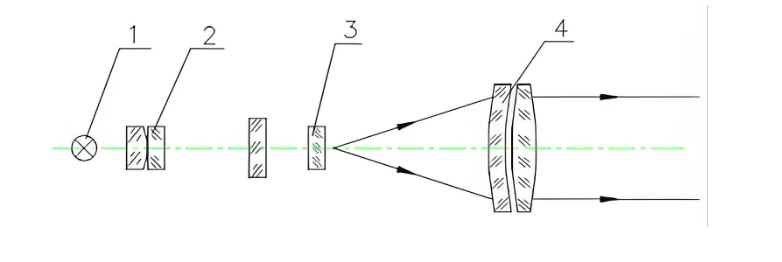

Optical path diagram：
Standard Components:
- Collimator Main Unit: 1 piece（Equipped with a fine-tuning foot bracket）
- Filters: 2 pieces (Orange, center wavelength 600nm; Green, center wavelength 532nm)
- Attenuator: 1 piece (Neutral Attenuator 430–730nm)
- Visible Reticles: 13 piece(Crosshair Reticles*1,Resolution Reticles*6 :1#2#/3#/4#/5#/USAF1951,Star Point Reticles*5: 0.1/.01/0.2/0.02/0.05,Porro Board*1)
- DC voltage stabilizing power supply: 1 piece (Output voltage:0-30V，Output current:0-5A)
- Light Source Assembly: 1 set (12V30W halogen light source)
Superior Optical Collimation Technology
The F-3000 Collimator utilizes parallel hole collimation and precision-engineered optics to achieve accurate beam alignment and radiation control, reducing scatter and enhancing image quality.
High-Durability Construction
Manufactured using high-density lead and aluminum alloys, this collimator ensures long-lasting performance, minimal radiation leakage, and enhanced durability in high-energy X-ray environments.
Versatile Applications Across Industries
Medical Imaging – Optimized for X-ray machines and diagnostic radiology equipment.
Industrial Inspection – Ideal for non-destructive testing (NDT) and flaw detection in manufacturing.
Scientific Research – Supports precision optical experiments, laser beam alignment, and radiation shielding.
Advanced Compatibility & Customization
The F-3000 Collimator is designed for seamless integration with various X-ray and optical imaging systems. It can be customized in size, shape, and material composition based on specific industry needs.
Product Advantages
- Precision Alignment: Provides high-accuracy radiation control, ensuring sharp imaging with minimal distortion.
- Low Radiation Scatter: Utilizes parallel hole technology to minimize unwanted X-ray dispersion, improving clarity.
- Wide Compatibility: Works with medical, industrial, and scientific imaging systems, making it a versatile optical solution.
- Customizable Design: Tailored options for different beam shapes, energy levels, and mounting requirements.
- Durable & Reliable: Built with high-grade materials for extended service life in demanding applications.
