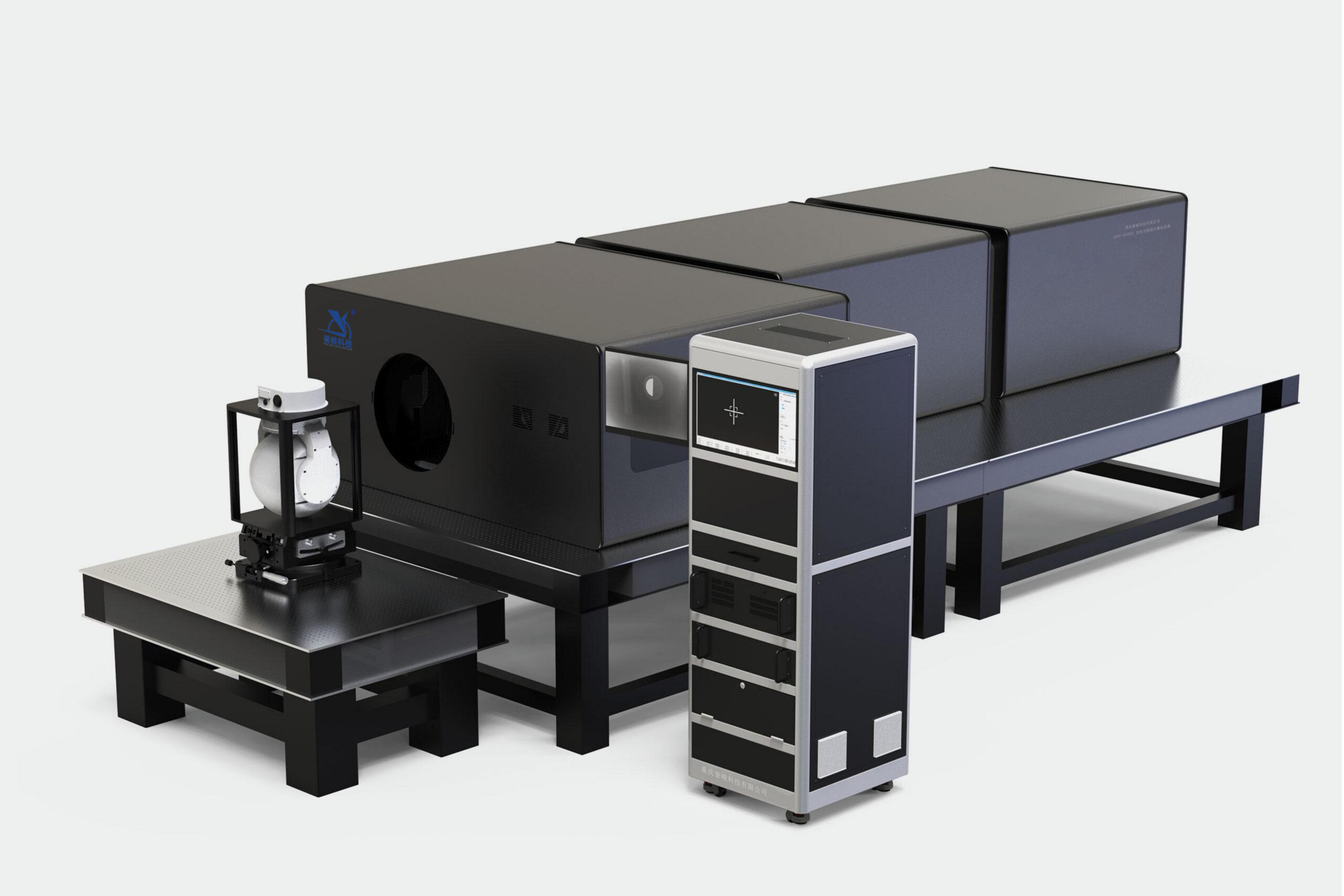

Product Functions Â
· Enables calibration and adjustment of the parallelism among the visible-light optical axis, infrared optical axis, and laser ranging optical axis of the electro-optical pod;
· Enables measurement of the parallelism deviation among the visible-light optical axis, infrared optical axis, and laser ranging optical axis of the electro-optical pod;
· Enables measurement of the laser intensity distribution, beam profile, and divergence angle of the laser ranging module;
· Enables testing of infrared camera parameters including MRTD, NETD, field of view angle, and distortion;
· Testing of parameters such as visible light camera field of view angle, distortion, MRC, and resolution;
System Testing Accuracy
ulti-optical axis parallelism testing accuracy: pixel-level
Laser ranging module divergence angle measurement: ±0.02 mrad
Laser ranging module spot position localization: ±0.1 mm
Infrared camera NETD test: ≤5 mK
Infrared camera MRTD test: ≤5 mK
Infrared camera field of view angle measurement: ±0.1°
Visible light camera distortion test: ±0.3%
Visible light camera resolution test: compliant with ISO 12233 standard
